VTrak Jx30 Expansion Chassis Series

VTrak JBOD expansion systems for backup, archiving, and data centers

Reliable enterprise-level storage architecture

The VTrak Jx30 series 6G SAS subsystems delivers a high performance SAS solution with advanced enterprise level reliability and functionality. The Jx30 series offers full redundancy required for a hardened enterprise solution. Designed with high-availability in mind, the VTrak x30 series expansion chassis supports dual active-active JBOD I/O modules, allowing for redundant data paths to ensure data availability. Dual power supplies and cooling fans are in place to minimize downtime and disruption to business continuity. The VTrak Jx30 expansion chassis is available in a 3U/16-bay, 4U/24-bay or an ultra-dense 4U/60-bay.

Success Story

With the incredible amount of data generated by the fascinating research at CERN, including 25 Petabytes of data generated annually by the Large Hadron Collider, the IT team at CERN has a massive job which includes providing computing and storage capacity for processing high energy physics data. CERN IT has deployed storage solutions from PROMISE Technology, including approximately 200 PROMISE VTrak J830s storage systems which are used to help tackle the big data challenge at CERN. Download the full story to see how VTrak rise to the challenge
Learn more

6G SAS serformance

The VTrak Jx30 series allows storage applications to access their data at blistering speeds using multi-lane 6G SAS architectures. The 6G SAS connectivity paves the way for large multi-lane bandwidth to support the flood of unstructured data now flowing across networks today. Fully backward compatible with 3G SAS/SATA devices, users have the ability to deploy 3G and 6G SAS/SATA hard drives and solid-state devices (SSD) in the Jx30 series.

High-efficiency design

VTrak products utilize environmentally-friendly production methods and materials as well as a high-efficiency design that saves energy. Efficient power supplies provide up to 90% power efficiency that enables the VTrak Jx30 series to improve total cost of ownership by conserving power, reducing heat output and improving cooling costs. The internal 6G SAS expander-based architecture also allows for transparent access to each drive, enabling full utilization of the power management features built into modern hard drives.

Outstanding service and support

Every VTrak J-Class is backed by the Promise three year limited warranty, with 24/7 (Americas & EMEA) telephone and email support. In addition to our industry leading warranty, Promise offers extended warranty and on-site parts replacement options (with service levels) and response times as low as 4 hours.

Models

  • Features

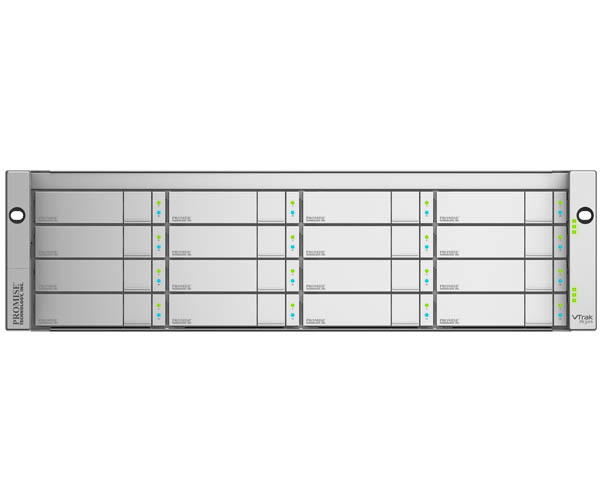

    • 3U/16 form factor featuring hot-swappable drive bays in SBB 2.0 package
    • Supports 6G and 3G SAS and SATA drives simultaneously
    • Dual active/active SAS JBOD I/O modules
    • Provides up to 90% power efficiency
    • Multi-ported, multi-lane 6G mini SAS (4x) ports provide large bandwidth capabilities
    • Redundant, hot-swappable Field Replaceable Units (FRUs)
    • SES-2 compliant enclosure management
    • Compatible with leading SAS/SATA drives, HBAs and RAID controllers
  • Specifications

    Specifications

    Form Factor
    3U 16-bay
    Model #
    Single I/O (J630sS)
    Dual I/O (J630sD)
    Drive Support
    Up to 16 3.5”/2.5” HDDs or SSDs*
    NL-SAS 7200 RPM: 6 Gbps, 3Gbps / SATA: 6Gbps, 3Gbps and 1.5Gbps / SSD
    External I/O Ports (per controller)

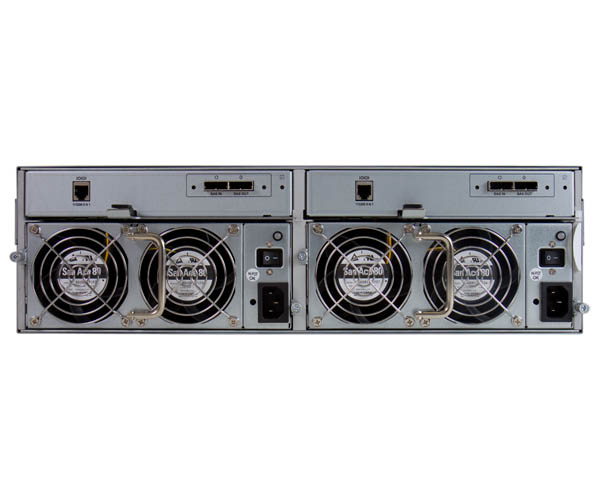

    Each SBB 2.0 I/O module has two SAS ports using industry standard Mini SAS 4x wide-port-SAS connectors (SFF-8088), one IN and one OUT for cascading JBODs
    I/O Module Features
    Self-configuring expander supports full SAS domain topology management
    SMP – SAS Management Protocol
    In-band access to Expander and PHY information
    Statistic counters and performance monitors
    SES EM – SES Enclosure Management (ANSI T10 SES 2 Compliant)
    SCSI SES command set over virtual SSP device
    Management Interfaces
    LED status indicator support for drives, FRU and enclosure environmentals
    In-band SES enclosure management alerts user to out of spec operation: thermal condition, voltage condition or component failures, protecting data and hardware
    Full subsystem management CLI through out-of-band RS232 serial port
    Enclosure Management Protocols
    SES over in-band SAS
    Voltage
    100-240 Vac Auto-Ranging
    Current (Maximum)
    15A @ 110 VAC; 6A @ 240 VAC
    Power Conversion Efficiency
    >80% @ 110V (>20% load), >80% @ 240V (>20% load)
    Temperature Range
    Operational: 5° to 40°C
    Non-Operational: -40° to 60°C
    Humidity
    Operational: 10% to 90% (Non-Condensing)
    Non-Operational: 5% to 95% (Non-Condensing)
    Acoustic Noise Levels
    55 dB (Typical), 65 dB (Maximum)
    Shock
    Operational: 5G, 11ms duration
    Non-Operational: 10G, 11ms duration
    Vibration
    Operational: 0.3G, 5 to 500 Hz
    Non-Operational: 1G, 5 to 500 Hz
    Environment Standards
    RoHS, GreenPC, WEEE
    Power Supply
    Dual 580W, 100-240 Vac auto-ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design
    Dimensions
    13.1 x 44.7 x 50.7 cm, 5.2 x 17.6 x 19.96 in
    Weight
    24 kg / 52.9 lbs (w/o drives)
    Support
    24 x 7 web and phone support
    Support website - drivers, firmware, knowledge base, and downloadable compatibility reports, online product registration
    Warranty
    Three year complete system limited warranty (Two-year extended warranty optional), next business day PROMISE Service Plus - onsite replacement included in every VTrak purchase**, optional 4-hour PSP upgrade
    *Please refer to compatibility list at www.promise.com
    **Where available
