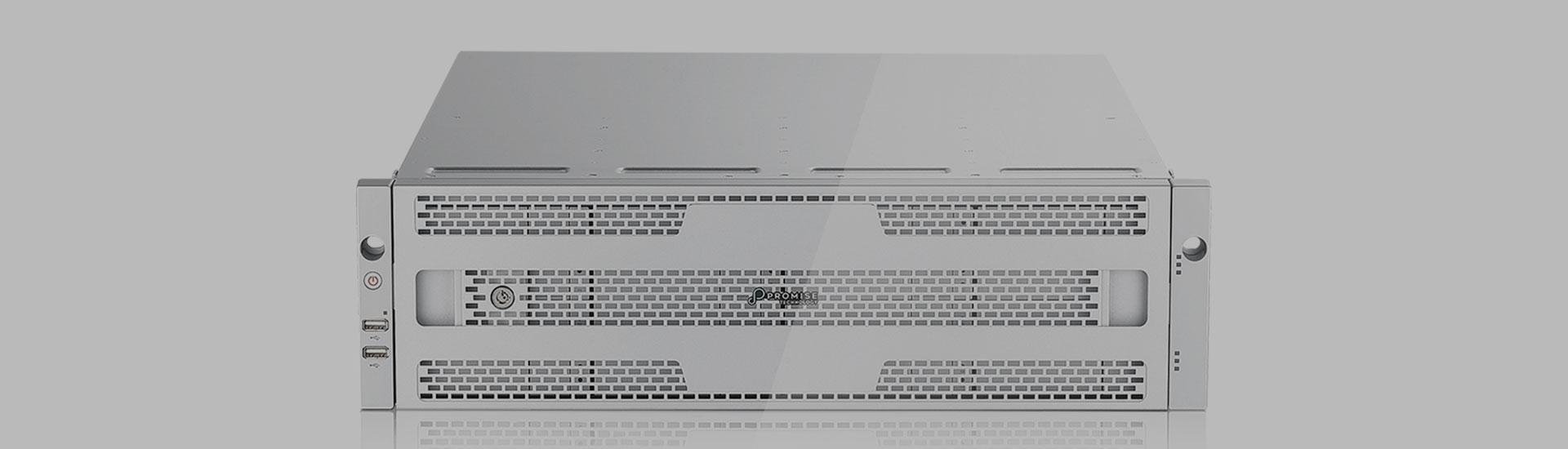

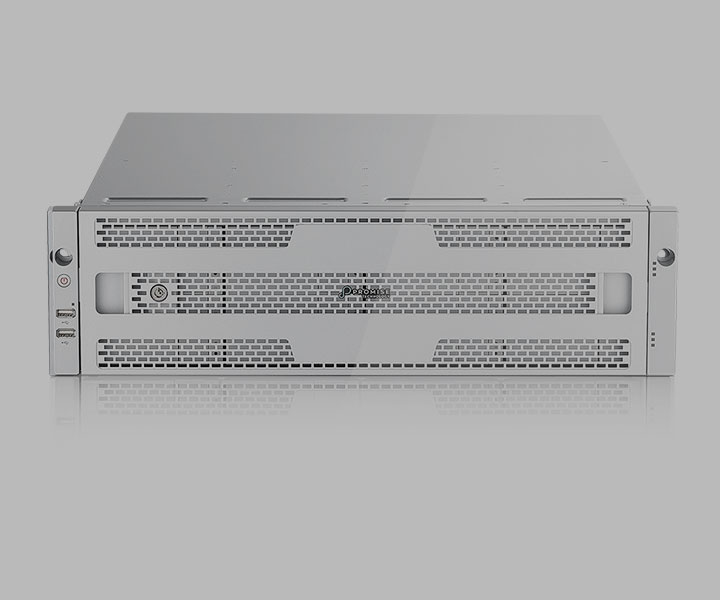

Vess A7000 Series

Optimized for Video Surveillance

The Vess A7000 Series storage appliance is specially engineered for IP video surveillance deployment on medium to large scale; ideally suited for surveillance systems in banks, malls, casinos, factories, warehouses, commercial, residential, governmental or private enterprises. The subsystems are capable of continuous recording and playback operation without dropping frames.

Server Level Performance & Expansion Design

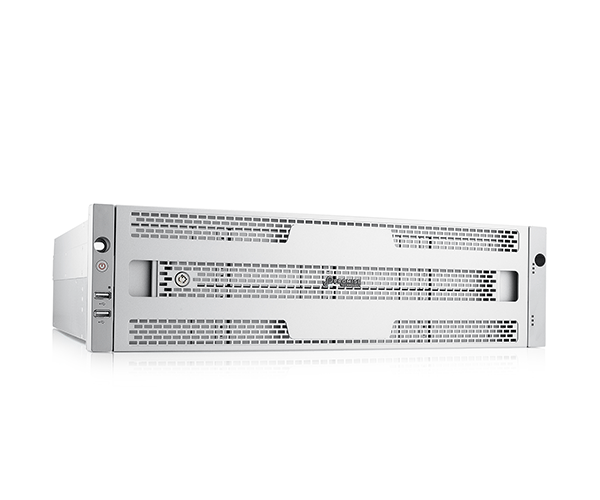

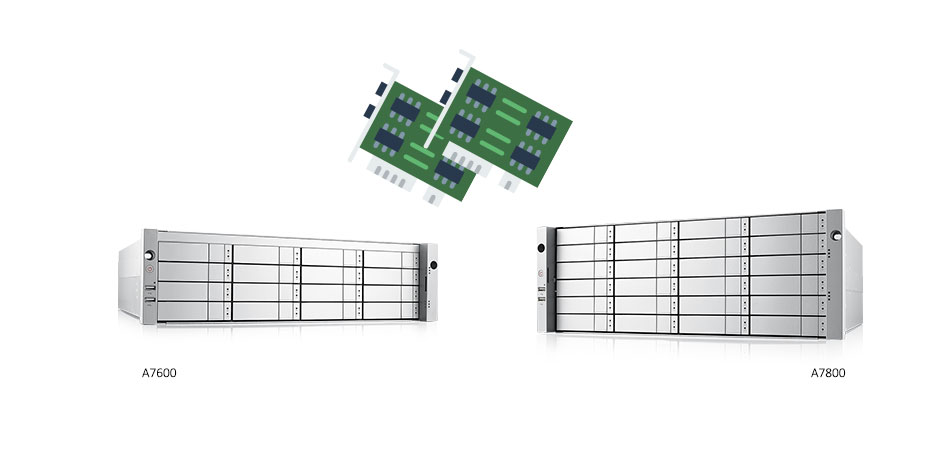

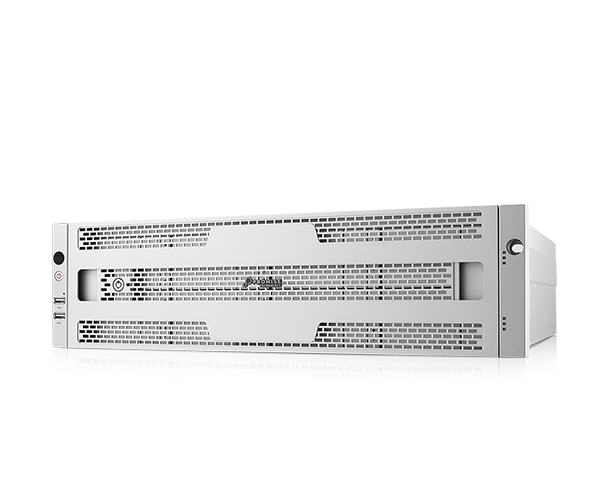

Two options for large HDD capacity enclosures are available: a 3U 16-drive (Vess A7600) and 4U 24-drive (Vess A7800). The Intel E5 CPU combined with Promise Technology knowhow create an outstanding combination of performance and reliability for Midsize to Large-Scale surveillance deployments. For larger storage system requirements, the system is cost effect using the Promise JBOD to extend capacity without the added expense of an additional RAID server.

Reduces Deployment Costs and Complexity

Support and equipment costs are reduced; without a separate RAID storage unit to manage, there is no longer a need for a server, controller cards, external cables, and a separate storage enclosure. Additionally, the Vess A7000 Series reduces interoperability conflicts caused when integrating different hardware.

SMARTBOOST™ Technologies

PROMISE proprietary SMARTBOOST™ Technology provides you the most stable and high performance storage solution for your surveillance system. Performance limited by storage equipment bottlenecks is significantly improved by Promise SMARTBOOST™ Technology. With the optimized software features and FRU hardware design of SMARTBOOST™ Technology, you have stability and high performance with the best C/P ratio.

Predictive Playback

Utilizes idle recording times to monitor read patterns to predict where the next playback will be needed so the hard disk drives are not competing with the workload of the system.

Remote Active Service

Takes all worries away by proactively detecting when PSU, controllers or HDDs are going into critical condition and automatically notifying user the hardware status. A huge advantage in installations with site restrictions, such as banking, as it not only saves maintenance costs but also the headaches caused when outside support personnel need access to restricted areas.

Sequential Pattern Recording

Eliminates the heavy workloads caused by random write patterns; this feature monitors recording patterns and collects data in the cache buffer and writes data to the drives once a full stripe is ready. This creates a sequential recording pattern which offers the smoothest performance.

Reduce the complexity of Maintenance by OPAS & RAS

One Plug Auto Service (OPAS), a feature unique to Promise’s video surveillance solutions, offer a greater level of user convenience, helps reduce maintenance complexity and streamlines technical support. OPAS enables users to easily collect all the necessary logs and data used by the Promise support team to analyze the status of Vess A-Series . Remote Access Service (RAS) via IPMI at A7000 series enhances this feature to make maintenance even more simple and efficient.



Models

  • Features

    • Optimized for Surveillance

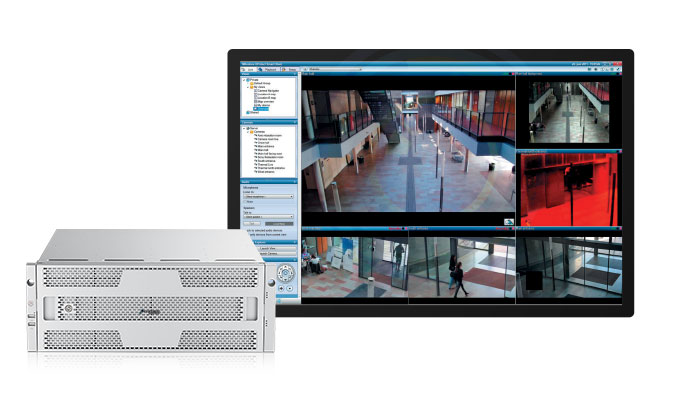

    • Extensive VMS Support
    • Midsize to Large-Scale Solutions
    • Cost Effective & Scalable
    • Easy to Administer & Maintain
  • Specifications

    Specifications

    Camera Range
    150-200

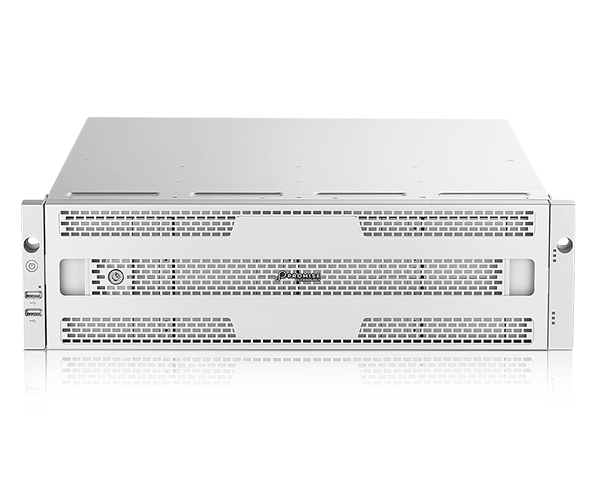

    Form Factor
    3U, 19" Rackmount
    Number Of Drives
    16 Drives (3.5")
    Drive Type
    12Gbs SAS/ 6Gbs SATA @ 3.5”, SSD capable @2.5”, Hot Swappable
    Controller(s)
    Single
    System Processor
    Intel® Xeon® E5-2603v4, E5-2600v4 series optional based on demand
    System Memory
    8GB Default (Max 512GB³)

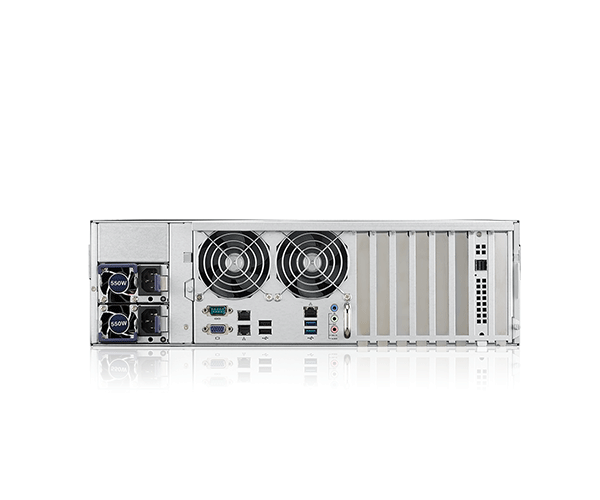

    I/O
    2x Gigabit Ethernet / 1xIPMI
    Internal Storage (M.2)
    128G
    Storage Expansion
    Optional Vess J Series Storage
    Max. # of HDDs Supported
    Up to 136 drives through iSCSI/SAS JBOD expansion
    USB Ports
    2x USB 3.0, 4x USB 2.0
    PCI Express Ports
    3x 16-lane Gen 3.0 PCIe³
    Graphics
    D-sub VGA(Mgmt Purpose)/Optional 2(Wide)+1(Narrow)
    Serial Interfaces
    1x Serial Port
    Audio & Microphone
    3x 3.5mm Audio Jack
    Sensor In
    Optional4
    Alarm Out
    Optional4
    RAID Levels
    0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50
    Any combination can exist at the same time
    Hot Spares
    Multiple global or dedicated hot-spare drives with revertible option
    Max LUNs per system/array
    256/32
    Supported OS (64-bit)
    Windows 10, WS 2012R2, WS 2016
    Management
    Graphical UI/SNMP via Ethernet, CLI/CLU via Ethernet or Graphics, OPAS Service via USB, IPMI, SDK or API for Integration
    Appliance Mode
    Surveillance Optimization @ Arrays in Normal and Degrade
    Event Notification
    Email, SNMP, Buzzer, LEDs
    AC Input
    100 ~ 240 VAC, 60 ~ 50Hz
    Current (Maximum)
    8-4A ( 550W ) , 10A ( 800W-Vess A7800)
    Power Supply
    Redundant 550W for each power
    System Controller
    Replaceable FRU design
    Operating Temperature
    5° ~ 40°C (-40° ~ 60°C non-operational)
    Dimensions
    131 x 503 x 447 mm (5.1 x 19.8 x 17.6 in)
    Weight
    System W/O HDD: 17.656 kg
    System W/ HDD: 28.699 kg
    Safety and EMI Certification
    CE, FCC, VCCI, RCM, BSMI, KC, (Class A), CB, cTUVus
    Warranty
    3 year limited warranty
    Optional Accessories
    Sliding Rail, 4/8/16/32/64GB DDR4 Memory
    ² The ideal camera range were the test output with fully populated enclosure and 8GB memory under 25fps, H.264 and High Video Quality compression
    ³Specifications may change without prior notice
    4256GB@RDIMM, 512GB @LRDIMM
    *The final spec may be various without further notice, please check with Promise website for the latest information
