Surveillance Solution for Mid-Sized Businesses

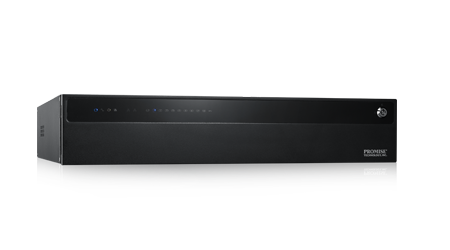

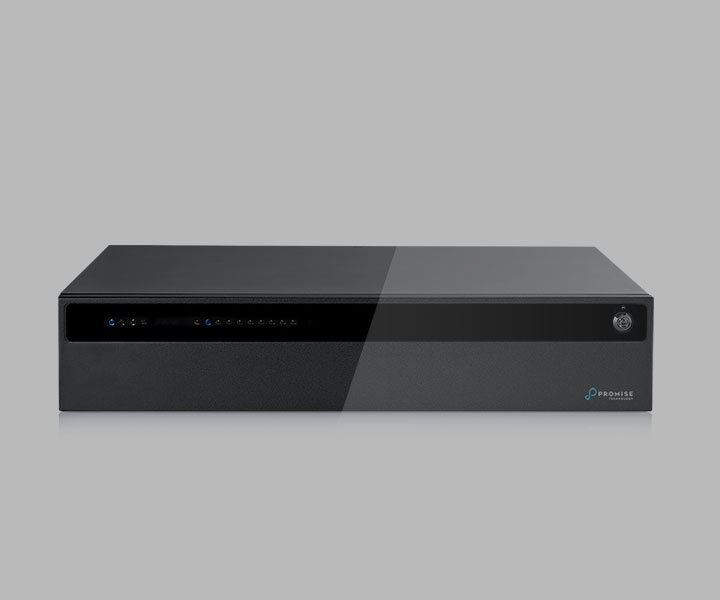

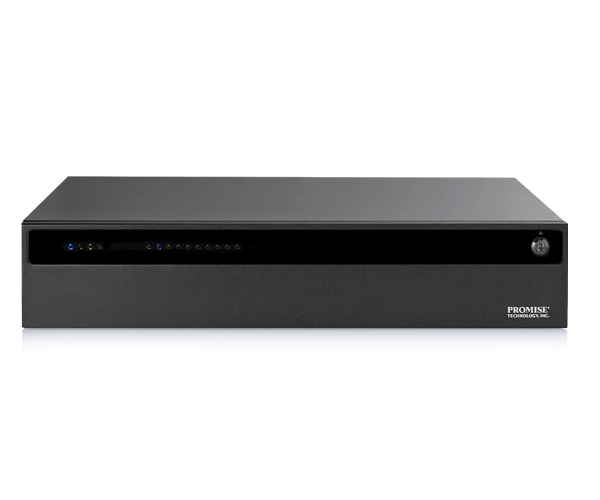

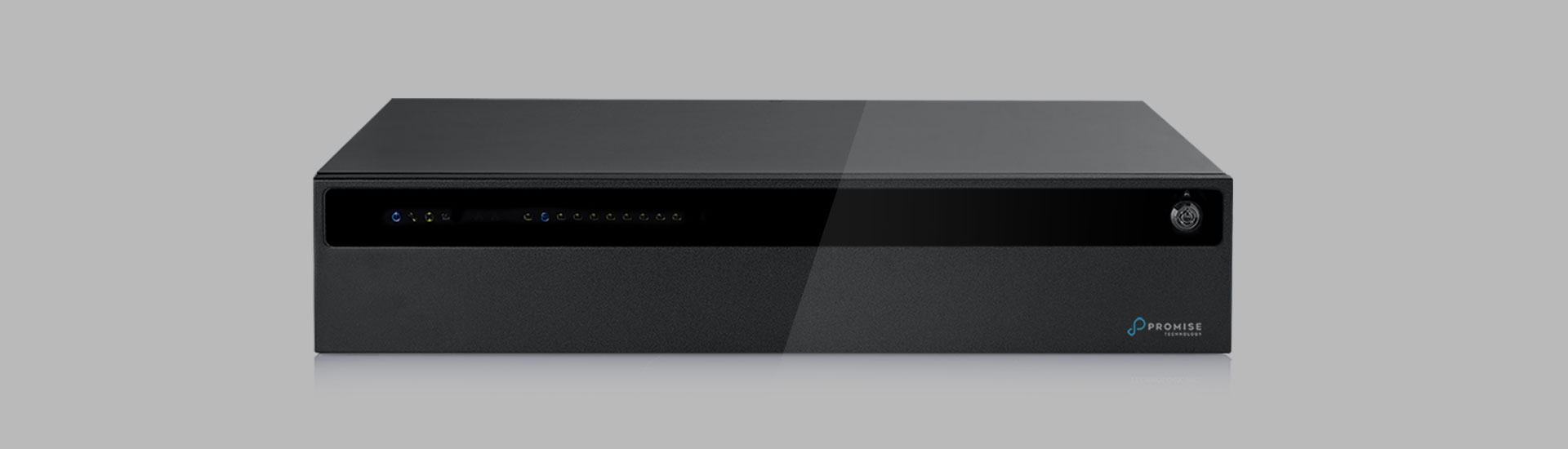

Vess A3340 is ideal for small-to-mid-sized video surveillance installations; reliable, high performance, easy to deploy and maintain. Certified and verified by the most popular VMS in surveillance industry with proven installations worldwide. Offering more diversified combinations of Intel Core and Xeon CPU options to create a high performance solution that easily handles the various surveillance system demands. Vess A3340 models are available with a single Power Supply Unit (PSU) or redundant PSUs. A redundant PSU guarantees system function if the PSU fails. Data on the Vess A3340 and additional capacity Vess RAID Storage systems are protected by PromiseRAID.

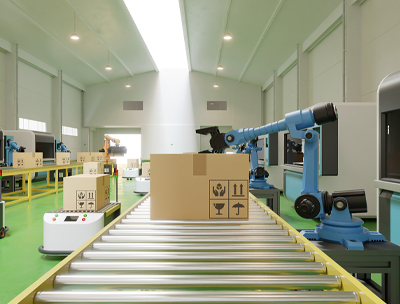

Success Story

Brand value and customer satisfaction are developed not only through the quality and functions of the product, but also by meeting the expectations of the customer. Because customers in Japan have particularly high expectations for quality, a system must be established to respond to that level of demand. However, enhancing cost competitiveness requires that quality be maintained at the same time that efforts are made to cut procedures and provide rapid service.
Learn more

Why Promise Vess Storage Appliances?

The Promise Vess Series of Storage appliances are reliable integrated server and storage solutions for IP video surveillance. Vess Storage appliances are open platform solutions that can be deployed with any of the leading IP cameras and video management software (VMS) for installations of any size.

More Flexible Deployment with Linux OS Supported

  • Linux users now have more options for their surveillance system deployment. Promise Vess A Series supports Linux distributions on select Vess A models for surveillance networks running Linux-based VMS in the back-end system*.


*The supported Linux distributions is listed on the datasheet and please contact your channel partners if you need others.

All-in-One Server and Scalable Total Solution of Storage Appliance

  • Reduces maintenance and service costs.
  • Easily expand via iSCSI by adding Promise storage.

Purpose Built for Surveillance and Highly Integrated Capability

  • SDK library available for VMS UI & Management Integration.
  • Supports to develop VMS plug-in enabling it to be managed via VMS interface.

Simplified Management and Serviceability

  • Modularized design and One Plug Auto Service simplifies maintenance and tech support workflow.

Certified by Surveillance Partners

Vess A3340 storage appliances are fully compatible with a range of IP cameras and world-clasee VMS from vendors including Aimetis, Axxonsoft, Digifort, Genetec, OnSSI, SeeTec, Sony and Milestone..etc.
The strong partnership will insure the customers will enjoy the well-rounded integration and outstanding performance.

SMARTBOOST™ Technology

PROMISE proprietary SMARTBOOST™ Technology creates the most stable and high-performance storage solution for your surveillance system. Performance that can be limited by storage equipment bottlenecks is significantly improved by Promise SMARTBOOST™ Technology. With the optimized software features and Vess A Series has the best stability and storage performance with the best C/P ratio.

Predictive Playback

Utilizes idle recording times to monitor read patterns to predict where the next playback will be needed so the hard disk drives are not competing with the workload of the system.

Remote Active Service

Takes all worries away by proactively detecting when PSU, controllers or HDDs are going into critical condition and automatically notifying user the hardware status. A huge advantage in installations with site restrictions, such as banking, as it not only saves maintenance costs but also the headaches caused when outside support personnel need access to restricted areas.

Sequential Pattern Recording

Eliminates the heavy workloads caused by random write patterns; this feature monitors recording patterns and collects data in the cache buffer and writes data to the drives once a full stripe is ready. This creates a sequential recording pattern which offers the smoothest performance.



Simplified Planning

With just a few clicks of the Promise online Planner you can create a list of the suggested products for your project; planning a surveillance project could not be easier. Start planning now at: www.promise.com/Surveillance/DesignTool

Models

  • Features
    • Ideal for mid-sized video surveillance installations.
    • Reliable, cost-effective and easy to deploy and maintain.
    • Powerful solution that enables it to easily handle the intensive demands of the latest VMS and analytics.
    • Perfect for up to 80 IP cameras.
    • Out of the box solution.
    • 3 year warranty – can extend to 5 years.
    • 2U 8-bay rackmount chassis.
    • Ideal for banks, casinos, prisons, schools, transportation, city surveillance, public facilities, government.
  • Specifications

    Specifications

    Camera Range¹
    80
    Form Factor
    2U, 19" Rackmount
    Number Of Drives
    8 Drives
    Drive Type
    Hot Swappable 3.5" Enterprise SATA HDD 6Gbs. Optional 2.5" Enterprise SATA SSD
    Internal Storage
    M.2 PCIe NVMe SSD 256GB (Standard) or M.2 256GBx2 OS RAID (Optional)
    System Processor
    Intel® Xeon® E-2226GE
    System Memory
    2 x 16GB DDR4 Default (Max 64GB)
    Storage Expansion
    Optional PROMISE Vess R and Vess J series via iSCSI
    Network Interface
    2 x Gigabit Ethernet
    USB Ports
    Front: 2 x USB 3.0, Back: 4 x USB 3.0, 2 x USB 2.0
    PCI Express Ports
    1 x PCIe3.0 x8 Low profile
    1 x PCIe3.0 x4 Low profile (available only when OS RAID card is not present)
    Graphic Interface
    1 x D-sub VGA, 1 x Display Port, 1 x HDMI™
    Audio I/O
    3 x 3.5mm Audio Jack
    Optical S/PDIF
    Yes
    RAID Levels
    0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50 (Any combination can be congured simultaneously)
    Hot Spares
    Multiple global or dedicated hot-spare drives with revertible option
    Supported OS (64-bit)
    Windows 10, Windows Server 2019, Linux
    Management Tools/Interface
    Graphical UI/SNMP via Ethernet, CLI via Ethernet or Graphics, OPAS Service via USB, SDK or API for Integration
    Surveillance Optimization
    SMARTBOOST™ Storage for Video Surveillance optimization
    Event Notification
    Email, SNMP (V1/V2/V3), Buzzer, LEDs
    AC Input
    100 ~ 240 VAC, 60 ~ 50Hz
    Current (Maximum)
    <8A @ 100-240Vac @full load
    Power Supply
    Hot Swappable 80 PLUS Platinum 550W Redundant Power Supply
    Temperature Range
    5° ~ 40°C (-40° ~ 60°C non-operational)
    Dimensions
    85 x 447 x 410 mm / 3.35" x 17.60" x 16.14"
    Weight
    W/o HDD :~12.75kg (~28.10 lbs), W/ HDD: ~18.50kg (~40.80 lbs)
    Warranty
    3-years standard warranty, optional extended warranty, and on-site parts replacement program (PROMISE ServicePlus) available.
    Support
    24/7 PROMISE eSupport Portal (support.promise.com), optional 24/7 phone and email support available.

    1. The Camera range is suggested value, tested in PROMISE lab under specific test scenario. For specific requirement, please consult with PROMISE sales representative.

    * The final spec may vary without advance notice. Please check PROMISE website for the updated information.
