Success Story

The bank consulted Videotronic Infosystems Nederland B.V. to help build a surveillance solution specially designed for ATM services distributed throughout the Netherlands. Videotronic designs solutions for banking, logistics, government and industrial environments. Videotronic has a long history of success using the PROMISE storage systems in their designs, so when the client bank needed a solution for their ATM network, PROMISE was ready with a brand new series specifically designed for this type of application.
Learn more

PROMISE Alliance Partners

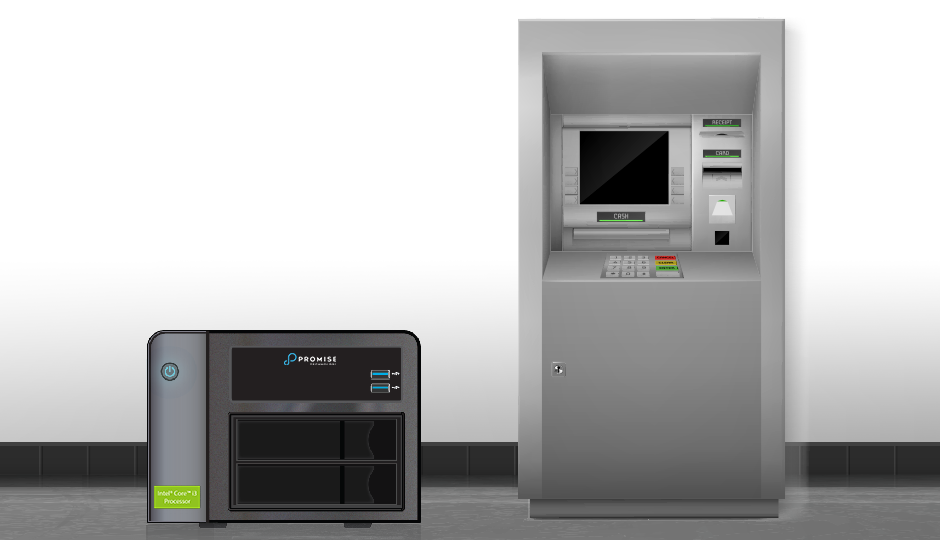

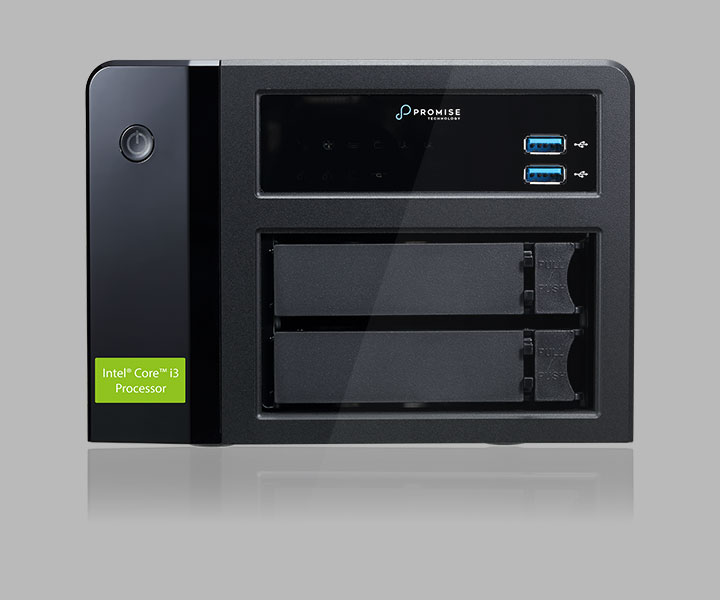

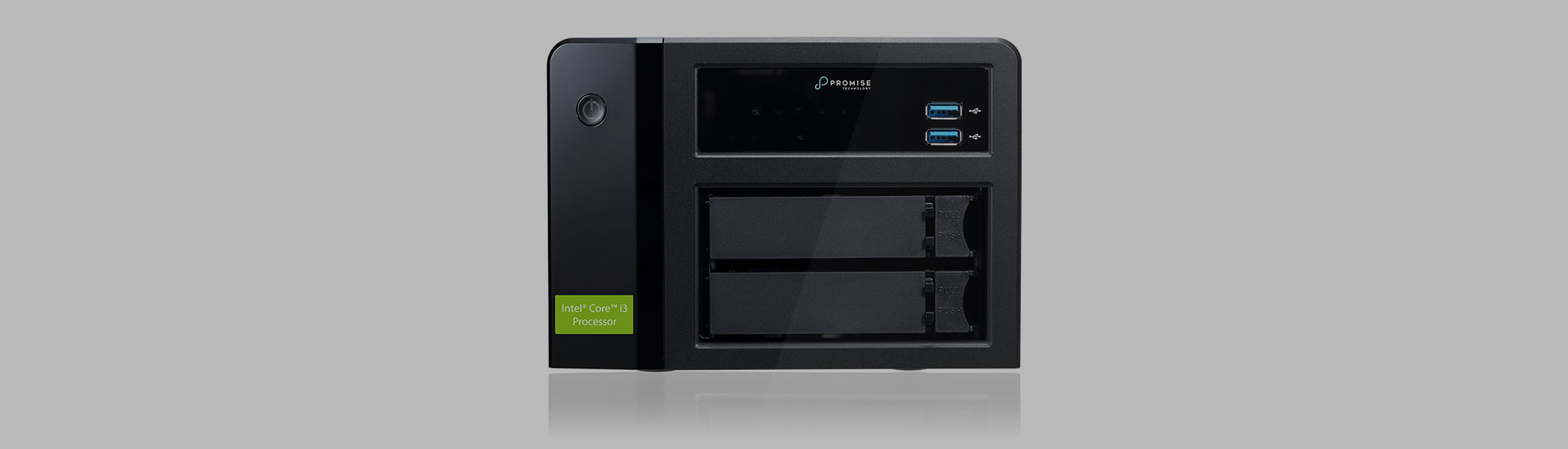

Optimized for Surveillance

Specially engineered for IP video surveillance deployment on smaller scale networks that require robust, reliable video storage and management; or where discretion and physical security of the system hardware is required, such as banks, ATMs, luxury shops.

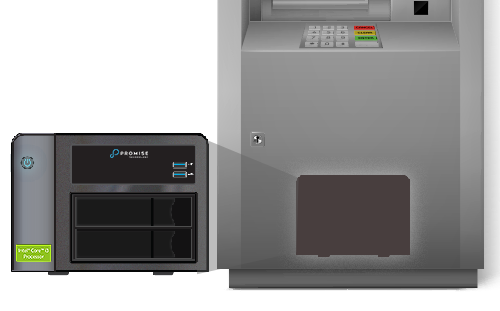

Compact Size for Discreet  Deployment

Small dimensions of the enclosure allow the unit to be discretely hidden on site in a small space or hardened security container.

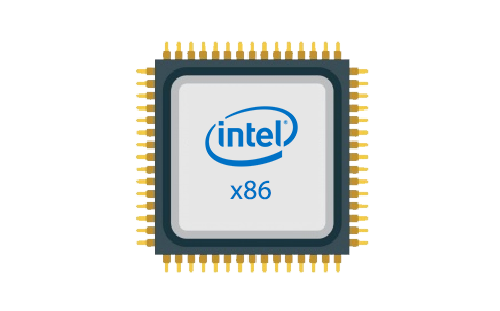

Reliable and Affordable x86 Platform

For the critical HW/SW requirement of surveillance systems, the proven stability and reliability of the Intel x86 platform is the best choice. Vess A8020 offers the Intel x86 platform in an affordable design.

SMARTBOOST™ Technology Inside

PROMISE proprietary SMARTBOOST™ Technology creates the most stable and high-performance storage solution for your surveillance system. Performance that can be limited by storage equipment bottlenecks is significantly improved by Promise SMARTBOOST™ Technology. With the optimized software features and Vess A Series has the best stability and storage performance with the best C/P ratio.

Predictive Playback

Utilizes idle recording times to monitor read patterns to predict where the next playback will be needed so the hard disk drives are not competing with the workload of the system.

Remote Active Service

Takes all worries away by proactively detecting when PSU, controllers or HDDs are going into critical condition and automatically notifying user the hardware status. A huge advantage in installations with site restrictions, such as banking, as it not only saves maintenance costs but also the headaches caused when outside support personnel need access to restricted areas.

Sequential Pattern Recording

Eliminates the heavy workloads caused by random write patterns; this feature monitors recording patterns and collects data in the cache buffer and writes data to the drives once a full stripe is ready. This creates a sequential recording pattern which offers the smoothest performance.

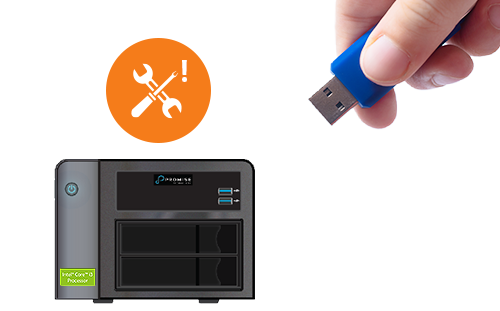

Reduced Complexity of Maintenance with OPAS

One Plug Auto Service (OPAS) is a feature unique to Promise Vess A series solutions. OPAS offers greater user convenience and reduces maintenance complexity of technical support. OPAS enables users to easily collect all the necessary logs and data used by the Promise support team to analyze the status of Vess A-Series Storage appliances.。



Simplified Planning

With just a few clicks of the Promise Surveillance Planner, export the report of the suggested products for your project, simplify efforts of planning your surveillance project. Start planning now at: www.promise.com/Surveillance/DesignTool

Visit our VMS and Planner In-Support-Of List to view the extensive list of supported configurations for various VMS and Planner versions

Models

  • Features

    • Extensive VMS Support
      Certified and tested with the world’s leading video management software.
    • Cost Effective
      Integrated solution results in less management overhead.
    • Easy to Administer & Maintain
      Hot swappable drive bays and One Plug Auto Service (OPAS) ensure Vess A8020 is easy to administer, maintain and service.
    • Ideal for Small Installation
      Perfect for small surveillance network in small space or hardened security unit where failure is not an option.
  • Specifications

    Specifications

    Camera Range¹
    161
    Form Factor
    Tower Base
    Number Of Drives
    2 Drives (3.5")
    Drive Type
    6Gbs SATA @ 3.5”
    # of Controllers
    Single
    System Processor
    Intel® Core i3-9100E
    System Memory
    8GB Default (Max 32GB)
    Network Interface
    2x Gigabit Ethernet
    Internal Storage (M.2)
    128GB
    Storage Expansion
    Optional Promise Vess R/J series via iSCSI
    iAMT Support
    YES

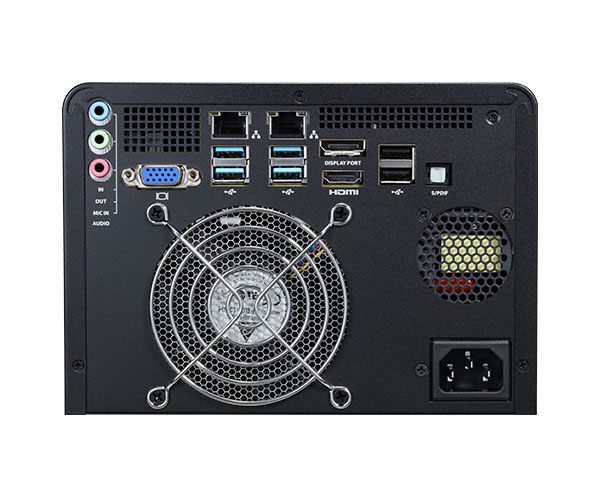

    USB Ports
    Front: 2x USB 3.0, Back: 4x USB 3.0, 2x USB 2.0
    Graphic Interface
    1x D-sub VGA, 1x HDMI™ , 1x DP port
    Optical S/PDIF
    YES
    Audio I/O
    3x 3.5mm Audio Jack
    RAID Levels
    0, 1
    Max LUNs per system/array
    16/2
    Supported OS (64-bit)
    Windows 10, WSS20192
    Management Tools/Interface
    Graphical UI/SNMP via Ethernet, CLI/CLU via Ethernet or Graphics, OPAS Service via USB, iAMT, SDK or API for Integration
    Appliance Mode
    Surveillance Optimization @ Arrays in Normal and Degrade
    Event Notification
    Email, SNMP, Buzzer, LEDs
    AC Input
    100 ~ 240V AC, 60 ~ 50Hz
    Current (Maximum)
    2A
    Power Supply
    250W Single ATX
    Operating Temperature
    10° ~ 35°C (-40° ~ 70°C non-operational)
    Dimensions (H x W x D)
    185 x 245.2 x 130 mm (W x D x H)
    Weight
    System W/ HDD: 4.86 kg
    Warranty
    3 year limited warranty
    Optional Accessories
    8/16GB DDR Memory
    1 The ideal camera range were the test output with fully populated enclosure and 8GB memory under 25FPS, H.264, 5Mbps Bitrate and 1080P resolution
    2CPU/OS can be optionally upgraded for project based.
    *The final spec may be various without further notice, please contact your sales representative.
