Drive Support

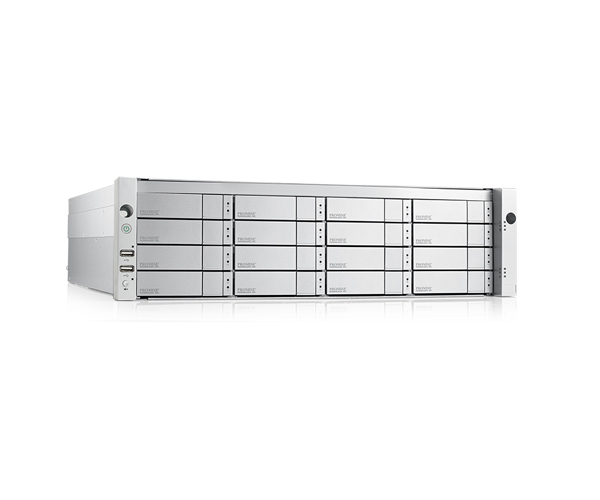

Up to 16 x 3.5" drives
- 6/12 Gb SAS, 6 Gb SATA HDD and SSD
- Supports any mix of SAS and SATA drives simultaneously in the same enclosure
External I/O Ports (per controller)
Each SBB2.0 RAID Controller has four 16 Gb FC SFP ports for Host interface and two 12 Gb SAS standard Mini SAS HD ports (SFF-8644) for Storage Expansion, RJ45 1Gb Ethernet and RS232 for Management ports
RAID Levels
0, 1 , 5, 6, 10, 50, 60
RAID Stripe Size Support
64K, 128K, 256K, 512K and 1MB
Hot Spares
Global or dedicated with revertible option
Max LUNs per Subsystem
1024
Max LUNs per system/array
32
Advanced Storage Features
- Advanced Cache Mirroring over PCIe Gen3
- Simple, drag-and-drop LUN Masking and Mapping
- Asymmetric LUN Unit Access (ALUA)
- Volume Copy
- PerfectFlash - Non-Disruptive Software Update
- I/O performance & power monitoring tools
- USB Service Log
- LDAP Support for central user management
Background Activities
- Media Patrol
- Background Synchronization
- Foreground Initialization
- Rebuild
- Redundancy Check
- Disk SMART Polling
- Online Capacity Expansion (OCE)
- RAID Level Migration (RLM)
- UPS Monitoring
- Feature rich task scheduler for background activities
PerfectRAID Features
- Predictive Data Migration (PDM)
- Intelligent Bad Sector Remapping
- SMART Error Handling
- NVRAM Error Logging
- Disk Slot Power Control
- Read/Write Check Table
- Write Hole Table
GreenRAID Features
- Four levels of advanced power management disk drive (MAID) support
- Efficient 80Plus Certified power supplies
Management Interfaces
- Web Based management using WebPAM PROe (Ethernet)
- Command Line Interface (CLI)
- Third Party Management Support via SNMP, CIM
Supported Operating Systems
Windows Server 2012, 2016, 2019, 2022, macOS Sierra 10.12.6, Ventura 13.1, RHEL 6.6, 6.7, 6.8, 7.0, 7.2, SLES 11 SP4, 12 SP1, VMWare ESXi 6.0, 6.5, Citrix Hypervisor 7.0 LTSR, 7.1 LTSR, 8.0, 8.1, 8.2 LTSR
Voltage
100--240 Vac Auto--Ranging
Current (Maximum)
9A @ 100 Vac; 4A @ 240 Vac
Power Conversion Efficiency
>80% @ 110V (>20% load), >80% @ 240V (>20% load) Temperature Range
Temperature Range
Operational: 5° to 40°C, Non-Operational: -40° to 60°C
Humidity
Operational: 10% to 90% (Non-Condensing), Non--Operational: 5% to 95% (Non-Condensing)
Acoustic Noise Levels
55 dB (Typical), 65 dB (Maximum)
Shock
Operational: 5G, 11 ms duration, Non-Operational: 10G, 11ms duration
Vibration
Operational: 0.3G, 5 to 500 Hz, Non-Operational: 1G, 5 to 500 Hz
Environmental Standards
RoHS, GreenPC, WEEE
Power Supply
Efficient 80PLUS GOLD Certified redundant PSU
Dimensions
(H x W x D) 131 x 446.7 x 507 mm (5.2" x 17.6" x 19.96")
Weight
25 Kg (56 lbs) w/o drives, 38.3 Kg (84 lbs) w/ drives
Warranty
3-year full system limited warranty, optional extended warranty, onsite parts replacement program
Support
24/7 e-mail and phone support, 24/7 access to PROMISE site-drivers, firmware, and compatibility list
