Optimized for Video Surveillance

The Vess A6000 Series storage appliance is specially engineered for IP video surveillance deployment on medium to large scale; ideally suited for surveillance systems in banks, malls, casinos, factories, warehouses, commercial, residential, governmental or private enterprises. The subsystems are capable of continuous recording and playback operation without dropping frames. Video data is protected by PromiseRAID on the Vess A6000 and any additional capacity on Vess R Series.



More Flexible Deployment with Linux OS Supported

For those who prefers Linux OS than Windows to build up their surveillance system, Promise Vess A series support the multiple Linux distributions on diferent Vess A models to meet the various requirement to deploy the Linux-base VMS in their surveillance back-end system(*). This helps the Linux users have more options for their surveillance system deployment to enjoy the beneft of Linux OS.

*The supported Linux distributions is listed on the datasheet and please contact your channel partners if you need others.



Higher Capacity with Better Design

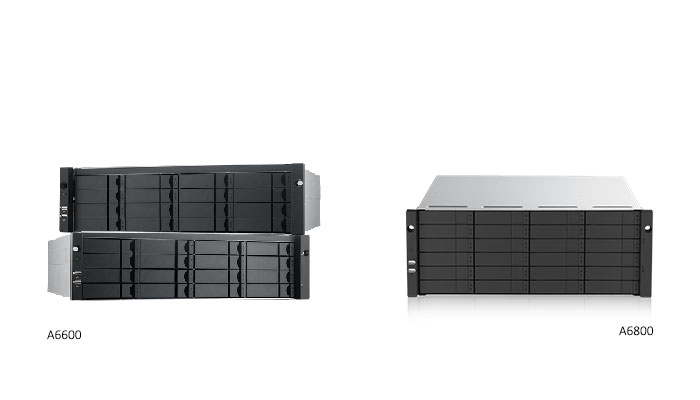

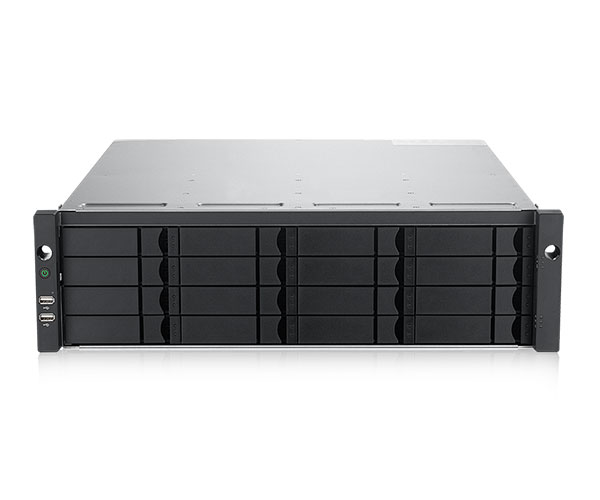

Two options for large HDD capacity enclosures are available: a 3U 16-drive (Vess A6600) and 4U 24-drive (Vess A6800). Combined with Promise Technology know how creates an outstanding combination of performance and reliability for Midsize to Large-Scale surveillance deployments. For larger storage system requirements, the system is cost effect using the Promise JBOD products to extend capacity without the added expense of an additional RAID server.



Reduces Deployment Costs and Complexity

Support and equipment costs are reduced; without a separate RAID storage unit to manage, there is no longer a need for a server, controller cards, external cables, and a separate storage enclosure. Additionally, the Vess A6000 Series reduces interoperability conflicts caused when integrating different hardware.

SMARTBOOST™ Technologies

PROMISE proprietary SMARTBOOST™ Technology creates the most stable and high-performance storage solution for your surveillance system. Performance that can be limited by storage equipment bottlenecks is significantly improved by Promise SMARTBOOST™ Technology. With the optimized software features and Vess A Series has the best stability and storage performance with the best C/P ratio.

Predictive Playback

Utilizes idle recording times to monitor read patterns to predict where the next playback will be needed so the hard disk drives are not competing with the workload of the system.

Remote Active Service

Takes all worries away by proactively detecting when PSU, controllers or HDDs are going into critical condition and automatically notifying user the hardware status. A huge advantage in installations with site restrictions, such as banking, as it not only saves maintenance costs but also the headaches caused when outside support personnel need access to restricted areas.

Sequential Pattern Recording

Eliminates the heavy workloads caused by random write patterns; this feature monitors recording patterns and collects data in the cache buffer and writes data to the drives once a full stripe is ready. This creates a sequential recording pattern which offers the smoothest performance.

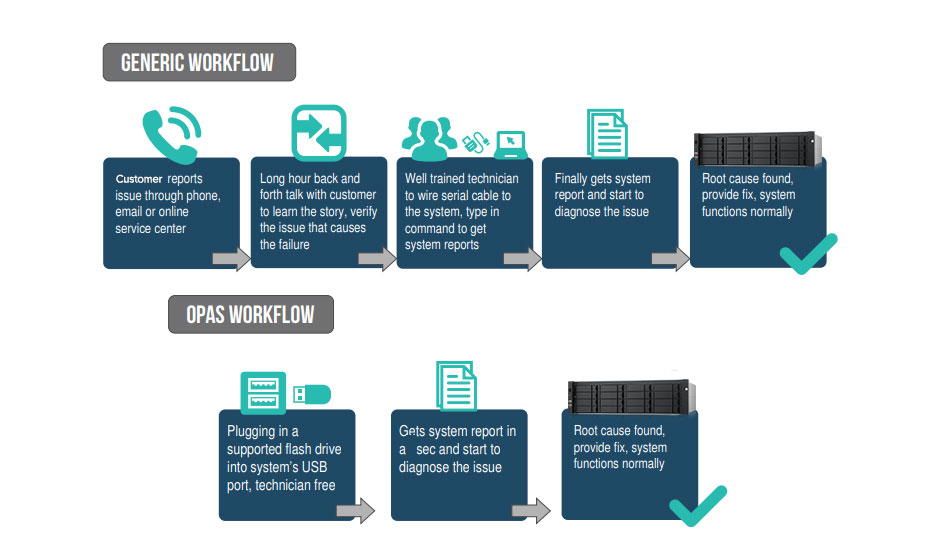

Reduce the complexity of Maintenance by OPAS

One Plug Auto Service (OPAS) is a unique feature of Promise Vess App solutions that provides user convenience, reduces complexity for maintenance, and stream- lines technical support. OPAS enables users to easily collect all the necessary logs and data used by the Promise support team to analyze.



Simplified Planning

With just a few clicks of the Promise Surveillance Planner, export the report of the suggested products for your project, simplify efforts of planning your surveillance project. Start planning now at: www.promise.com/Surveillance/DesignTool

Visit our VMS and Planner In-Support-Of List to view the extensive list of supported configurations for various VMS and Planner versions

Models

  • Features

    • Optimized for Surveillance
    • Extensive VMS Support
    • Midsize to Large-Scale Solutions
    • Easy to Administer & Maintain
    • Cost Effective & Scalable
  • Specifications

    Specifications

    Camera Range¹
    170
    Form Factor
    3U, 19" Rackmount
    Number Of Drives
    16 Drives
    Drive Type
    Hot Swappable 3.5" Enterprise SATA HDD 6Gbs. Optional 2.5" Enterprise SATA SSD
    Internal Storage
    M.2 PCIe NVMe SSD 256GB (Standard) or M.2 256GBx2 OS RAID (Optional)
    System Processor
    Intel® Xeon E series
    System Memory
    2 x 16GB DDR4 Default (Max 128GB)
    Storage Expansion
    Optional PROMISE Vess R and Vess J series via iSCSI
    Network Interface
    2 x Gigabit Ethernet (Optional accessory: Dual port 10Gbps SFP+ NIC)
    USB Ports
    Front: 2 x USB2.0, Back: 4 x USB3.0
    PCI Express Ports
    1 x PCIe3.0 x8
    1 x PCIe3.0 x4 (available only when OS RAID card is not present)
    Graphics
    1 x D-sub VGA, 1 x Display Port, 1 x HDMI™
    Audio I/O
    3 x 3.5mm Audio Jack
    Graphics Card Support
    Supports Nvidia Pascal, Turing, Ampere, Ada Lovelace and Hopper Arch. GPUs
    1 x 200mm (L) * 111mm(H) * single slot
    RAID Levels
    0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60 (Any combination can be configured simultaneously)
    Hot Spares
    Multiple global or dedicated hot-spare drives with revertible option
    Supported OS (64-bit)
    Windows 10, Windows Server 2019, Windows Server 2022
    Management Tools/Interface
    Graphical UI/SNMP via Ethernet, CLI via Ethernet or Graphics, OPAS Service via USB, SDK or API for Integration
    Surveillance Optimization
    SMARTBOOST™ Storage for Video Surveillance optimization
    Event Notification
    Email, SNMP (V1/V2/V3), Buzzer, LEDs
    AC Input
    100 ~ 240 VAC, 60 ~ 50Hz
    Current (Maximum)
    <8A @ 100-240Vac @full load
    Power Supply
    Hot Swappable 80 PLUS Platinum 550W Redundant Power Supply
    Temperature Range
    5° ~ 40°C (-40° ~ 60°C non-operational)
    Dimensions
    131 x 482 x 545 mm / 5.16" x 18.98" x 21.46"
    Weight
    W/o HDD ~20.50kg (~ 45.20 lbs)
    W/ HDD: ~32.50kg (~ 71.50 lbs)
    Warranty
    3-years standard warranty, optional extended warranty, and on-site parts replacement program (PROMISE ServicePlus) available.
    Support
    24/7 PROMISE eSupport Portal (support.promise.com), optional 24/7 phone and email support available.

    1. The Camera range is suggested value, tested in PROMISE lab under specific test scenario. For specific requirement, please consult with PROMISE sales representative.
