Pegasus32 Series

NEW THUNDERBOLT™ 3 AND USB 3.2 GEN 2
HARDWARE RAID STORAGE FOR CREATIVE PROFESSIONALS
  • PromiseRAID engine renowned for performance, reliability and security.
  • Based on TitanRidge, Intel’s latest Thunderbolt™ chip, Pegasus32 has great new features expanding your connectivity.

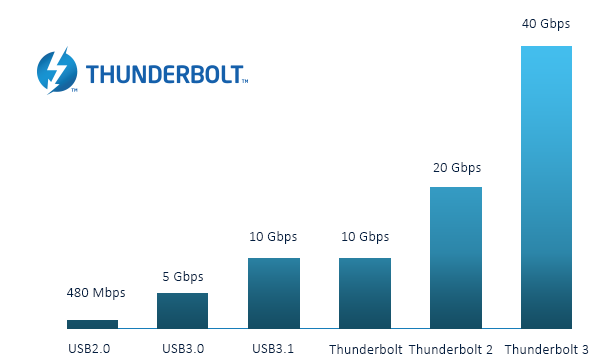

  • Connect to either Thunderbolt™ 3 enabled host at 40Gbps or USB 3.2 Gen 2 enabled host at 10Gbps!
  • Thunderbolt™ 3 cable included

Watch Video

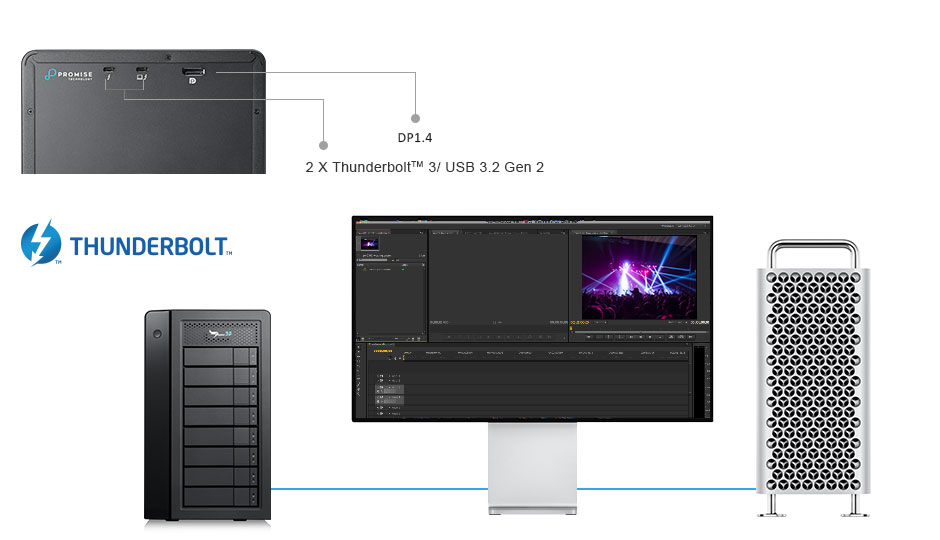

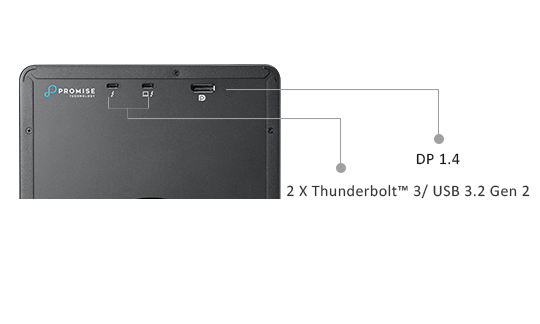

  • Supports 8K monitor via the full size 4-lane DP 1.4 port!
  • Power your hosts up to 85W with Thunderbolt™ 3
  • Up to 144TB of raw capacity with Pegasus32 R8
  • Read/Write speeds increase up to 2800 MB/s with SSD*
    *Performance figures presented here are tested by PROMISE. Figures may vary by environment.

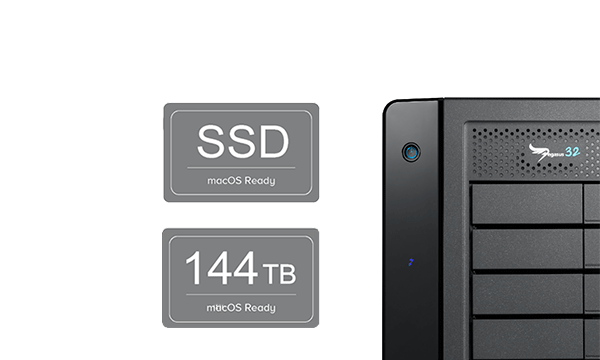

Massive Capacity and Extreme Performance

  • 18 Terabyte Hard Disk Drives (HDD) installed in the Pegasus32 R8 model, delivering a whopping 144 TB total storage capacity in the Pegasus32 R8.
  • High performance Solid State Drives (SSD) installed in Pegasus32 R8, increasing performance of the already extremely high performance RAID storage systems to levels unmatched by competing systems.
    Learn More

BLAZING SPEED UP TO 40Gbps, ROCK-SOLID HW RAID5+ PROTECTION. HOT-SWAP 7200 rpm HDDs or high IOPS SSDs.

Multiple Displays

Dual Thunderbolt™ 3 ports use for daisy chain. High quality, reliable and quiet. Supports Kensington Lock. Promise SW Utility and cable included.3Y HW Warranty.



Success Story

Streets Ahead Productions brings more than 4 decades of collective experience in the entertainment business to their full-suite video production company in Los Angeles, CA. The Streets Ahead crew has produced an impressive portfolio of work including music videos, social media content and other narrative driven projects for Atlantic Records, Endemol Shine, and the Producers Guild of America, among others.
Learn more

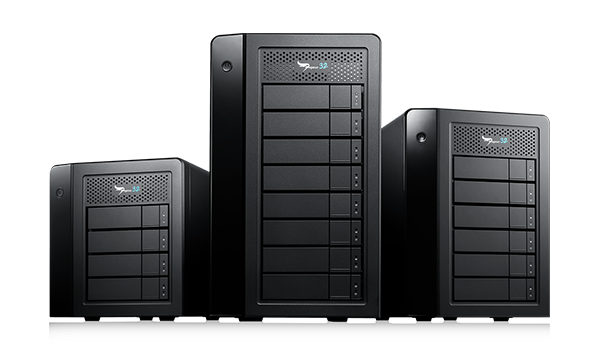

Pegasus32 Series Specifications

Model
Pegasus32 R4
Pegasus32 R6
Pegasus32 R8


Over two hours of uncompressed 8K footage

Best value for performance, protection, and capacity

Highest capacity and protection

Form Factor
4-Bay hardware RAID enclosure
6-Bay hardware RAID enclosure
8-Bay hardware RAID enclosure
Interface
2x USB-C ports either Thunderbolt™ 3 (40Gbps) or USB 3.2 Gen 2 (10Gbps)
RAID Levels
0, 1, 5, 6, 10, JBOD
0, 1, 5, 6, 10, 50, JBOD
0, 1, 5, 6, 10, 50, 60, JBOD
Compatibility
Enabled systems with macOS 10.14 or newer and Windows 10 x64
Shipping Capacity
16TB
24TB/48TB
32TB/ 64TB/ 80TB/ 96TB/ 144TB/
16TB (SSD)
Dimensions
Height: 7.5 in / 19.2 cm
Width: 7.3 in / 18.7 cm
Length: 9.6 in / 24.5 cm
Height: 9.8 in / 25.1 cm
Width: 7.3 in / 18.7 cm
Length: 9.6 in / 24.5 cm
Height: 12.2 in / 31.0 cm
Width: 7.3 in / 18.7 cm
Length: 9.6 in / 24.5 cm
Weight
15 lb / 6.8 kg
20.1 lb / 9.1 kg
24.2 lb / 11 kg
Warranty
3-year warranty
Requirements
Workstation or laptop with Thunderbolt™ 3 port or USB 3.2 Gen 2 port*
0.7m Thunderbolt™ 3 / USB cable included (USB Type-C)
* One host connection at a time.
*Shipping capacity varies by regions
