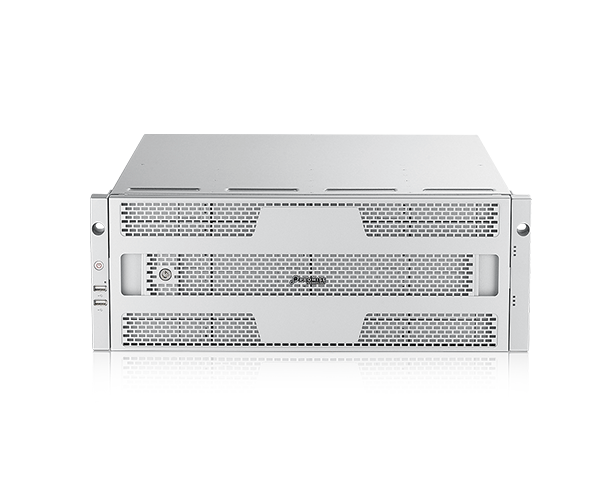

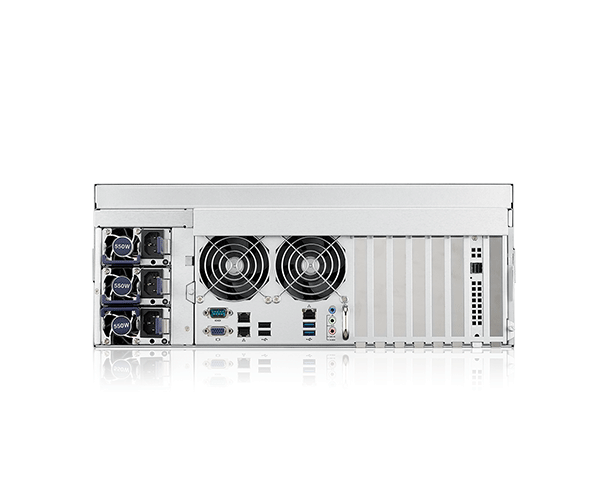

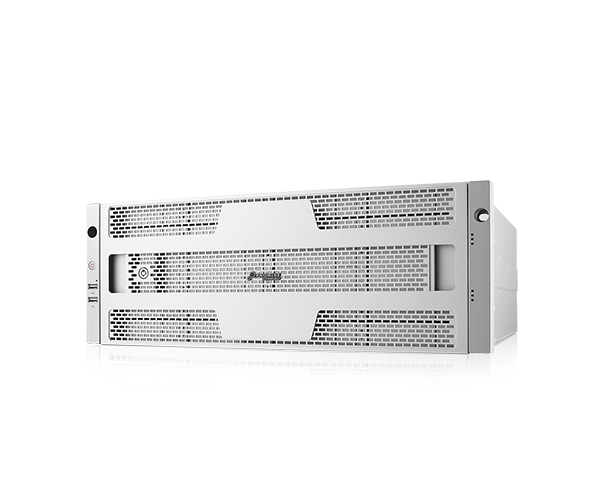

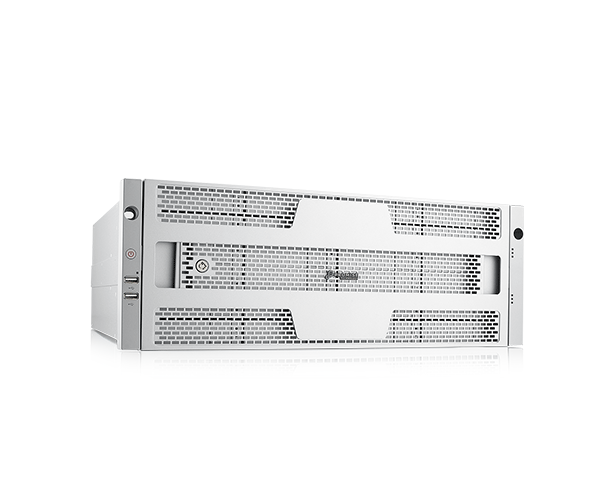

Form Factor
4U, 19" Rackmount
Number Of Drives
24 Drives (3.5")
Drive Type
12Gbs SAS/ 6Gbs SATA @ 3.5”, SSD capable @2.5”, Hot Swappable
System Processor
Intel® Xeon® E5-2609v4, E5-2600v4 series optional based on demand
System Memory
8GBx2 Default (Max 512GB2)
I/O
2x Gigabit Ethernet / 1xIPMI
Internal Storage (M.2)
128G
Storage Expansion
Optional Promise SAS and iSCSI Storage
Max. # of HDDs Supported
Up to 104 drives through SAS JBOD expansion(iSCSI optional)
USB Ports
2x USB 3.0, 4x USB 2.0
PCI Express Ports
3x 16-lane Gen 3.0 PCIe2
Graphic Interface
D-sub VGA(Mgmt Purpose)/Optional 2(Wide)+1(Narrow)
Serial Interfaces
1x Serial Port
Audio & Microphone
3x 3.5mm Audio Jack
RAID Levels
0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60
Any combination can exist at the same time
Hot spares
Multiple global or dedicated hot-spare drives with revertible option
Max LUNs per system/array
256/32
Supported OS (64-bit)
Windows 10, Windows 2016, Windows 2019
Management
Graphical UI/SNMP via Ethernet, CLI via Ethernet or Graphics, OPAS Service via USB, IPMI, SDK or API for Integration
Appliance Mode
Surveillance Optimization @ Arrays in Normal and Degrade
Event Notification
Email, SNMP, Buzzer, LEDs
AC Input
100 ~ 240 VAC, 60 ~ 50Hz
Current (Maximum)
8-4A ( 550W ) , 10A ( 800W-Vess A7800)
Power Supply
Redundant 550W for each power, Hot swappable N+1 Design (800W optional)
System Controller
Replaceable FRU design
Operating Temperature
5° ~ 40°C (-40° ~ 60°C non-operational)
Dimensions
173 x 503 x 447 mm (6.8 x 19.8 x 17.6 in)
Weight
System W/O HDD: 22.484 kg
System W/ HDD: 39.048 kg
Warranty
3 year limited warranty
Optional Accessories
Sliding Rail, 4/8/16/32GB DDR4 Memory
