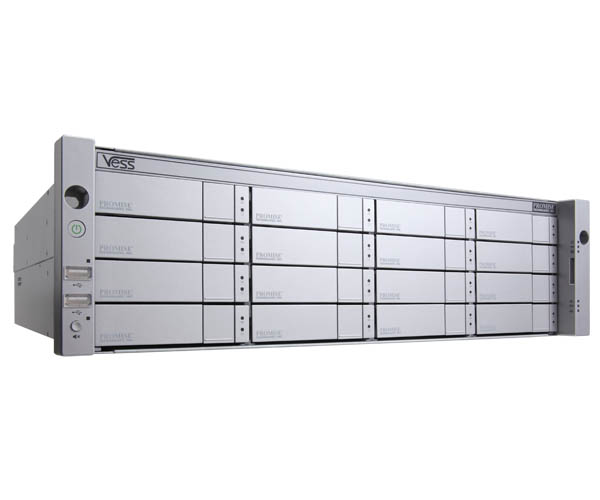

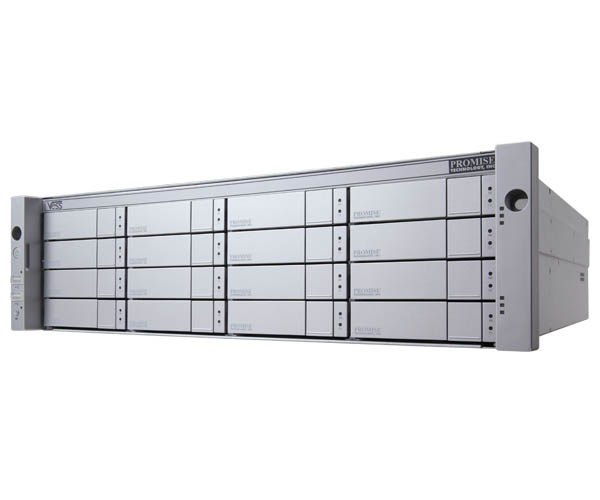

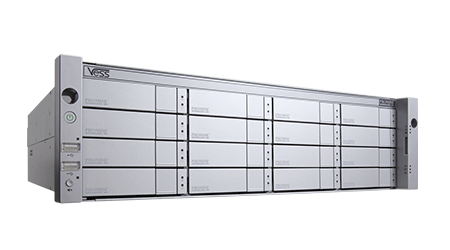

Vess J2000 Series

When you need to expand storage, you need flexibility

Cost-effective storage expansion platform

As the demands for capacity expansion continue to grow for IT applications and video surveillance, it is imperative that IT administrators find cost-effective solutions. The Vess J2000 Series is a robust storage expansion platform that serves as a building block to provide high-availability and flexibility in a cost-effective package that is simple to set up and administer. The 3U-16 bay Vess models are fully expandable to meet your needs today, and tomorrow. Up to six additional expansion chassis may be added to each Vess R2000 RAID subsystem.

Redundant power supplies

The Vess J2000 Series are equipped with redundant power supplies; should one fail, the other continues to power the subsystem until the faulty one can be replaced. Additionally, the power supplies are hot swappable, which enables you to leave the subsystem running while you replace the failed power supply.

User friendly design

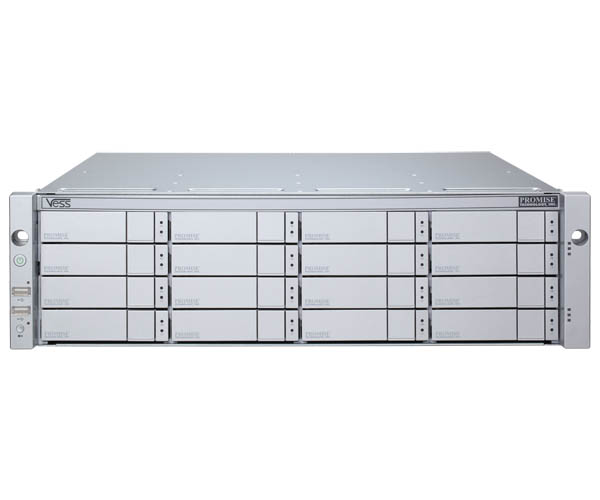

Simplicity and ease of use are absolutely crucial for SMBs. The Vess J2000’s user-friendly design features the power button on the front panel. The simple design ensures the user doesn’t have to reach behind the system and unplug the power cord or access the management GUI console to turn off the machine; simply turn the machine on and off through the front panel.

Reduce power and cooling costs

The Vess J2000 Series utilizes environmentally friendly production methods and materials as well as a high-efficiency design that saves energy. Featuring 80Plus Bronze Certified power supplies delivering up to 85% power efficiency, the Vess J2000 Series improves total cost of ownership by conserving power, reducing heat output, and improving cooling costs.

Models

  • Features
    • Expand Vess R2000 RAID subsystems up to 112 disk drives with Vess J2000 expansion units
    • Industry leading performance and reliability at an excellent price
    • Supports 6Gbps & 3Gbps SAS & SATA drives simultaneously
    • Dual active/active SAS JBOD I/O modules
    • 3U-16 form factor featuring hot-swappable drive bays
    • Reliable N+1 redundant power supplies
    • Energy efficient system reduces power and cooling costs
  • Specifications

    Specifications

    Product Category
    JBOD Storage Expansion Enclosure
    Availability
    Released
    Form Factor
    3U16, 19" rackmount
    Controller(s)
    Single controller (J2600sS)
    Dual controller (J2600sD)
    Drive Support
    SAS/SATA 6Gb/s
    Cache Memory per Controller
    N/A
    Max. # of HDDs Supported
    N/A
    Host Connect Interface

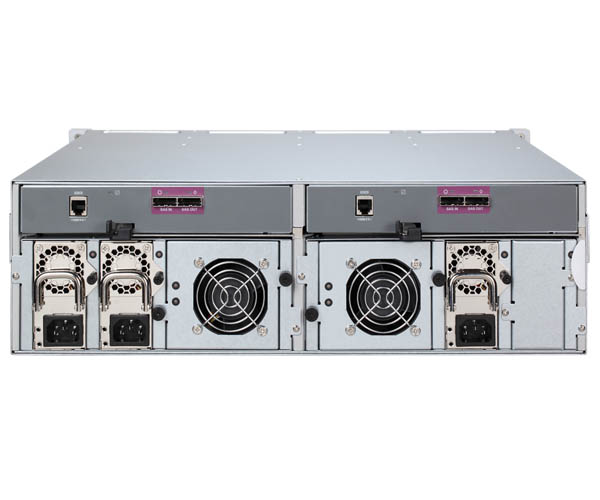

    Dual, IN/OUT 6G SAS-wide (x4) port over SFF-8088 (per controller)
    RAID Levels
    Host Dependent
    Power Supply
    500W (Three redundant 250W N+1 design)
    Dimensions
    131 x 447 x 507 mm
    Weight
    15 kg (33.1 lbs) w/o drives 26.2 kg (57.8 lbs) w/ drives
    Warranty
    3 years and EW plans
