Performance

Data Protection is Essential

Protection against data loss is ensured by the famous PromiseRAID engine featured in the entire VTrak line of network storage systems. Additional backup mechanisms to cloud or remote storage are easily managed using the web-based management interface.

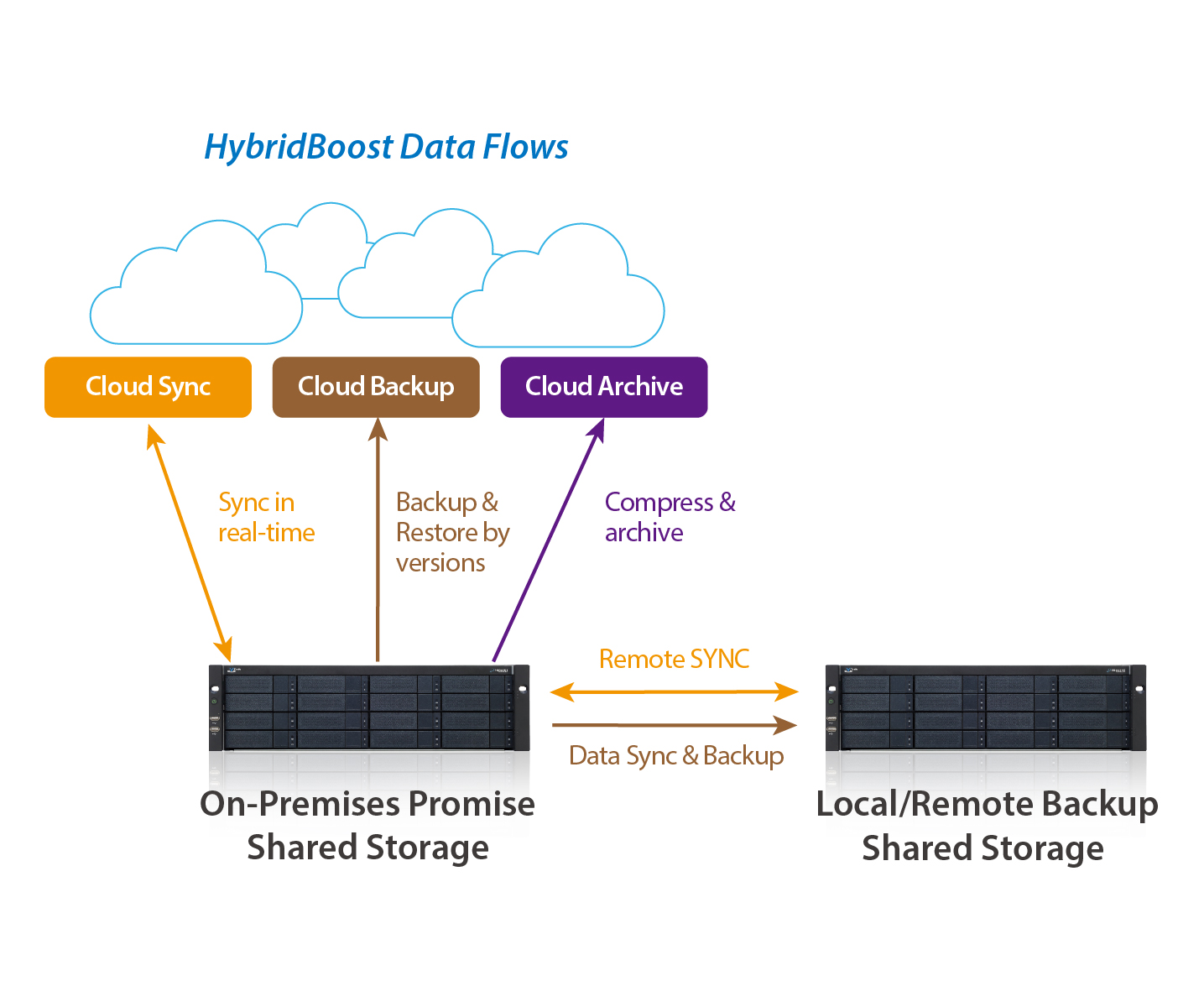

HybridBoost

Introducing HybridBoost, the PROMISE exclusive must-have tool for syncing, backing up and archiving your digital assets. The intuitive PROMISE Utility Pro streamlines Sync, Backup and Archive functions for users on Amazon S3, Google Cloud, Wasabi, Azure Blob and many other popular off-premise Cloud storage providers. Plus, the Remote Sync feature can be used for syncing with other PROMISE storage systems.

Manageability

Simplified administration is another win for VTrak N-Series. The system is shipped ready to use with a Shared Storage pool that includes an administrator-controlled Team folder setup for immediate sharing. The software for both administrator and client is very easy to use, with an intuitive GUI. The default setup requires very little administration yet still gives complete access control to the administrator. More advanced system administration is available using the web-based management user interface.

Specifications

Model

VTrak N1616



Form Factor

3U

Drive Support

3.5" & 2.5" SATA 6Gb/s HDD/SSD, U.2 NVMe

Processor

Intel CPU i7-8700. 3.2GHz.
12MB Cache.65W 6 Cores

Memory

Default 64GB (Maximum: 128GB)

Max HDDs

16

Memory Slot

4 x Long-DIMM DDR4

Drive Bays

16 x 3.5-inch

Boost

PROMISE TierBoost
(U.2 NVMe/SSD/HDD Tiering)

RAID Level

RAID 0, 1, 5, 6, 10, 50, 60

Hot Swap

Yes



More Spec +

Software Highlight

Supported OS

Windows 10 and macOS 10.15 above

Management Tool

WebPAM Insight

Shared Storage Features



Network Protoco

CIFS / NFS / FTP / WebDAV

Max Storage Capacity

18TB x 16

Concurrent CIFS Session

256

Throughput

With 10 SSD TierBoost

10G Base-T
Read : 6000 MB/s
Write : 3000 MB/s

10G SFP+
Read : 6000 MB/s
Write : 3000 MB/s

25G SFP28
Read : 6000 MB/s
Write : 3000 MB/s

Physical Information



Gigabit (RJ45)

2

LAN Port

10G Base-T : 8-Port / 10G SFP+ : 8-Port /
25G SFP28 : 4-Port

USB Port

USB2.0 x 2 (Front) & USB3.2 x 4 (Back)

Graphic Port

HDMI x 1; VGA x 1

Serial Port

Yes

Dimension

131mm x 447 mm x 503mm

Weight

34Kg (with HDD)

AC Input

(550W x 2) 100 ~ 240V AC, 47 ~ 63Hz

Power Consumption

110V, Power Consumption: 306W
230V, Power Cosnumption: 296W

Fan

System fan: 4500RPM.12V

Environment



Temperature Range

Operating: 5° ~ 35°C
(non-operating: -40° ~ 60°C)

Acoustic Noise Levels

with cable cover Level 10 : 39.7db
(w/o cable cover) Level 10 : 44db

Warranty and Support



Warranty

3-years standard warranty, optional extended warranty, and on-site parts replacement program (PROMISE ServicePlus) available.

Support

24/7 PROMISE eSupport Portal (support.promise.com), optional 24/7 phone and email support available.
